Product Name:

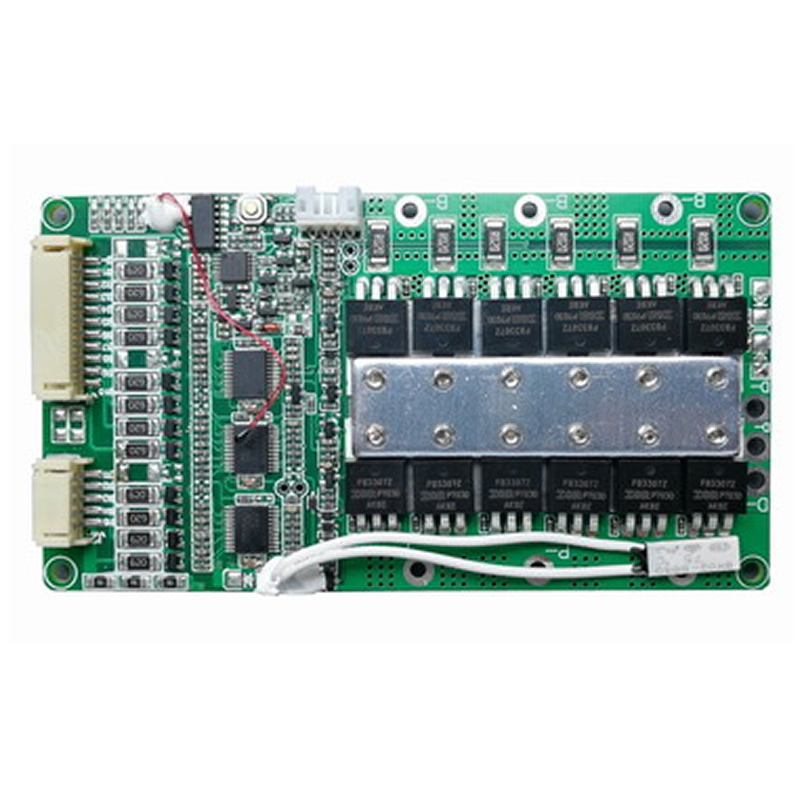

| Model: | PCM-L16S30-A44-16S |
|---|---|
| Working current: | 30A |
| Size: | L145*W75*T10mm |
| Balancing: | YES |
| Temp. control: | NTC |
| Battery Type: | Li-ion/Li-po |
| Battery Series: | 24S-14S |
| Continuous Current: | 21-40A |
| No | Test item | Criterion | |
| 1 | Communication Interface | HDQ or I2C | |
| 2 | Capacity | Designing battery capacity （PCM） | 30000mAh |
| Max capacity（Battery pack） | 320000mAh | ||
| Min capacity（Battery pack） | 800mAh | ||
| External capacity Indication | |||
| Gas gauge algorithm | Impedance Track | ||
| 3 | Voltage | Charging voltage | DC: 67.2V CC/CV（4.2V/1cell） |
| Balance voltage for single cell | 4.2V±0.03V | ||
| 4 | Current | Balance current for single cell | 67mA±5mA |
| Normal operating-mode current：Gas Gauge in NORMAL mode,ILOAD > Sleep Current | 160 uA | ||
| SLEEP operating-mode current：Gas Gauge in SLEEP mode,ILOAD < Sleep Current | 80 uA | ||
| FULL SLEEP operating-mode current：Gas Gauge in FULL SLEEP mode,ILOAD < Sleep Current | 25 uA | ||
| Maximal continuous charging current | 30A | ||
| Maximal continuous discharging current | 30A | ||
| 5 | Over charge Protection | Over charge detection voltage | 4.25±0.025V |
| Over charge detection delay time | 0.5S—2S | ||
| Over charge release voltage | 4.15±0.05V | ||
| 6 | Over discharge protection | Over discharge detection voltage | 2.5±0.08V |
| Over discharge detection delay time | 10—1000mS | ||
| Over discharge release voltage | 3.0±0.1V | ||
| 7 | Over current protection | Over current detection voltage | 0.2±0.015V |
| Over current detection current | 85±10A | ||
| Detection delay time | 5ms—60ms | ||
| Release condition | Cut load | ||
| 8 | Short protection | Detection condition | Exterior short circuit |
| Detection delay time | 200us-10ms | ||
| Release condition | Cut load | ||
| 9 | Resistance | Protection circuitry | ≤50mΩ |
| 10 | Temperature | Operating Temperature Range | -40～+85℃ |
| Storage Temperature Range | -40～+125℃ | ||
1. RC airplanes
2. RC boats
3. RC cars
4. RC guns
5. RC Toy
Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
