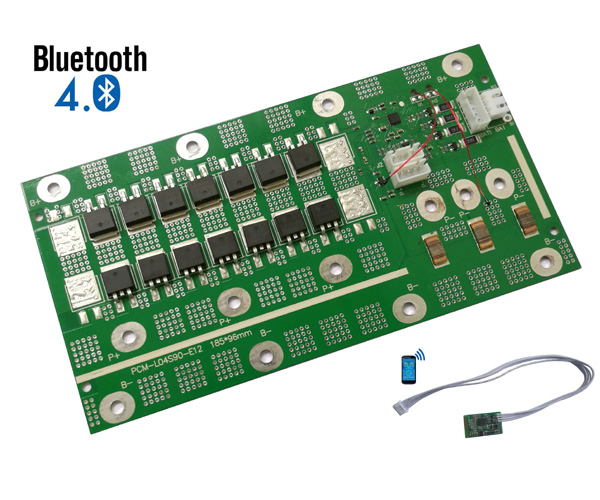

Product Name:
* For 3-4S Li-Ion/ LiFePO4 battery packs；
* While it can be wireless connection through bluetooth mobile APP；
* It adapts gauge IC BQ40Z50 reading voltage, capacity, current, temperature, cycle life and so on；
* I has protection functions of over charge, over discharge, short-circuited, over current, over temperature and so on；
* Max continuous working current 70A, with same port for charge and discharge；
* With equilibrium function；
* The needed datas can be readable by LCD display named PCM-LCD001-415；

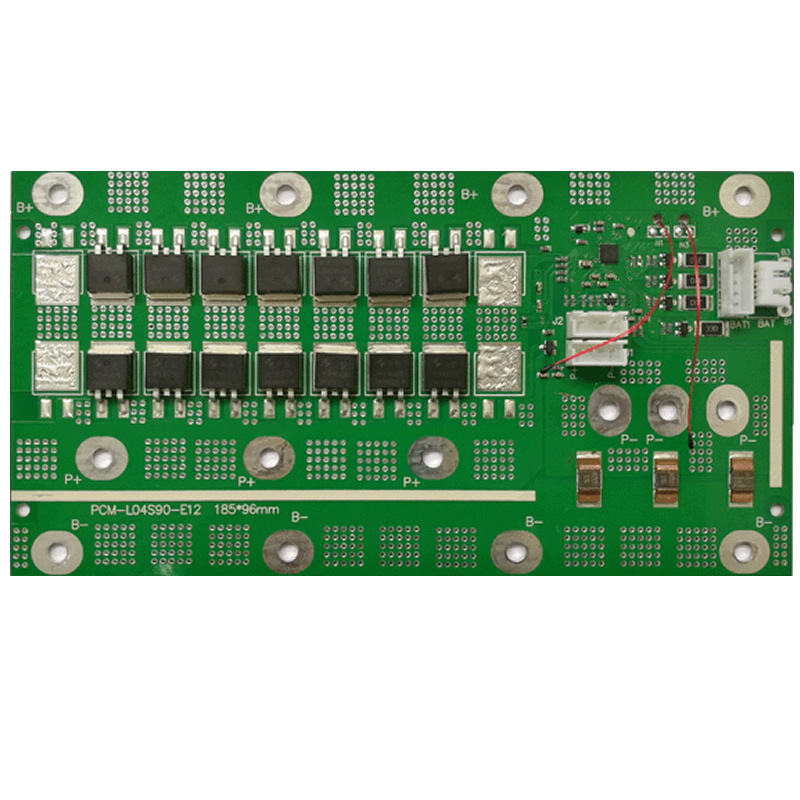

* Dimension (LxWxH): 185mm x 96mm x 10mm；
LCD and mobile phone APP display：
1. Battery pack voltage
2. Single cell voltage
3. Current
4. State of charge（SOC）
5. Charge or dischage State
6. Cycles
7. Temperature
8. Remaining capacity（RMC）
9. Design capacity（DCAP）
10. Full charge capacity（FCC）
11. AverageTimeToEmpty（ATTE）
12. AverageTimeToFull（ATTF）
13. SerialNumber（SN）
14. Manufacturer Name
15. Communication frequency
16. Manufacture date
17. Battery curv
Professional Li-ion battery safe package or as your request , every carton less than 10KGS.
